Samsung’s Galaxy S26 chip split and the politics of sovereign silicon
An in-depth analysis of Samsung’s Galaxy S26 chip split, examining 2nm yield stability, Qualcomm cost pressure, vertical integration tensions and the broader implications for sovereign silicon...
The Galaxy S26 series arrives with the customary focus on optical stacks and generative features, yet the more critical narrative is found in Samsung’s fractured chipset strategy. Samsung has once again divided its flagship line. The in-house Exynos 2600 powers the Galaxy S26 and S26+ in most global markets, while Qualcomm’s Snapdragon 8 Elite Gen 5 is reserved for the United States, China, and Japan. The Galaxy S26 Ultra remains exclusively on the Snapdragon chipset worldwide.
Table Of Content

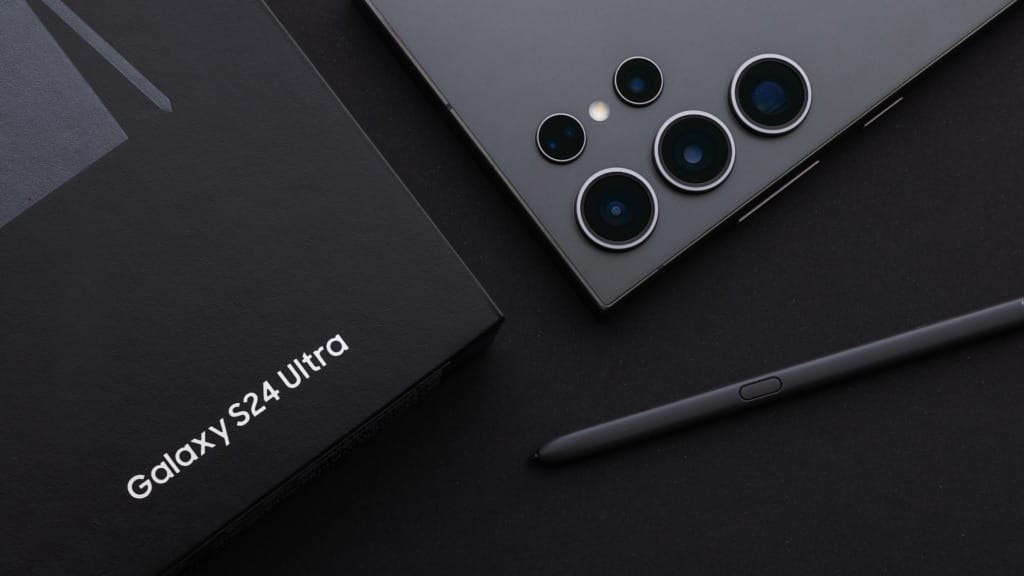

This configuration replicates a defensive pattern seen in the 2024 Galaxy S24 cycle. At that time, the Exynos 2400 was marketed as a redemption for the foundry division after years of efficiency scandals. While independent testing showed the gap with the Snapdragon 8 Gen 3 had narrowed, it persisted in sustained performance and modem efficiency. The S26 cycle represents a far more dangerous gamble. This is no longer a routine regional variation: it is a high-stakes validation of Samsung’s 2nm Gate-All-Around (GAA) node and a desperate attempt to maintain industrial autonomy in a market increasingly dictated by external vendors.
Manufacturing credibility and the 2nm yield wall
The Exynos 2600 is the primary vehicle for Samsung’s SF2 process, the industry’s first 2nm GAA implementation for high-volume mobile devices. On paper, the specifications are formidable. It integrates a deca-core CPU based on the Armv9.3 architecture and claims a 39% improvement in peak CPU performance alongside a 113% uplift in generative AI throughput via its NPU. However, for senior industry analysts, these figures are secondary to the question of yield. While 2025 was plagued by persistent reports of sub-50% yields for Samsung’s early 2nm wafers, the sheer scale of the Exynos 2600’s global deployment suggests the company has finally cleared those manufacturing hurdles. By committing its 2nm GAA (SF2) node to a high-volume flagship launch across Europe and India, Samsung is signalling that it has achieved the ‘golden’ yield stability required for commercial viability—a critical milestone for the industry’s first 2nm nanosheet implementation.
To capitalise on this 2nm manufacturing leap, Samsung has overhauled the silicon’s internal logic with an ‘All-Big Core’ strategy. By utilising the Armv9.3 architecture to entirely eliminate ‘little’ efficiency cores in favour of a deca-core cluster of Cortex-C1 Ultra and Pro units, Samsung aims to widen the performance envelope. However, this shift places an immense burden on thermal management; if the 2nm Exynos cannot handle these high-intensity workloads without aggressive throttling, it will revive the narrative that Samsung Foundry cannot yet match TSMC’s process maturity.
Cost control and the Qualcomm tax
The decision to retain Exynos volume in Europe and India is driven by the brutal economics of the 2026 supply chain. Qualcomm’s Snapdragon 8 Elite Gen 5 is currently regarded as the definitive Android platform, yet it reportedly costs around US$240-US$280 per unit. These rising chipset costs squeeze the bill-of-materials for the Mobile Experience (MX) division, limiting retail price flexibility and promotional margins in competitive markets. By maintaining an internal alternative, Samsung prevents Qualcomm from achieving total monopolistic pricing power over its premium lineup.
The link between manufacturing credibility and margin management is direct. If Exynos proves viable at scale, Samsung protects its long-term bargaining position and reduces its multi-billion-dollar annual payout to Qualcomm. If it fails to achieve performance parity, the company risks becoming structurally reliant on a single external designer, effectively turning its mobile division into a high-margin distributor of Qualcomm’s technology. For consumers in Europe or India, the technical justification matters less than the perceived “silicon class system,” where they pay flagship prices for what benchmarks suggest is a secondary processor.
Vertical integration and internal friction
Samsung remains the only Android entity attempting total-stack integration on this scale. It architects the Exynos 2600 through System LSI, fabricates 2nm wafers at Samsung Foundry, and sells the final product through the MX division. While this vertical model theoretically offers protection against external supply shocks, it creates intense internal friction. The MX division requires a chip that can compete with Apple’s A20, while the Foundry division needs high internal volume to justify the massive capital expenditure of the 2nm transition.
The current S26 allocation is a political compromise between these competing internal interests. Snapdragon is prioritised in the United States and Japan, regions where media scrutiny and carrier influence are most intense. Exynos is utilised elsewhere to provide the scale necessary to keep the 2nm fabs running. Withdrawing Exynos entirely would be a strategic admission of defeat, signalling that South Korea has lost its place at the leading edge of logic semiconductor manufacturing. This “sovereign silicon” imperative often outweighs the immediate consumer demand for hardware parity.
AI efficiency as the new competitive benchmark
In 2026, the mobile battleground has shifted from raw GPU frames to persistent on-device AI efficiency. Samsung frames the Exynos 2600 as a premier AI system-on-chip, emphasising hardware-backed security and support for the ExecuTorch framework. This focus on local inference for translation and contextual assistants is a response to both privacy concerns and the rising latency of cloud-based AI. While Qualcomm typically leads in peak token generation speeds, Samsung is betting that efficiency per watt will be the more relevant metric for a background AI layer that never turns off.
The success of this efficiency-first strategy relies on a specialised hardware solution: the ‘Heat Path Block’ (HPB). This new copper-based thermal packaging reduces resistance by 16% by allowing more direct dissipation from the 2nm die. Historically, Exynos has suffered from a lack of developer optimisation compared to Snapdragon. If the HPB technology allows the S26 to maintain peak AI inference for local LLMs without the ‘Exynos heat’ of years past, Samsung may finally shed its thermal stigma and prove that its advanced-node ambition wasn’t an expensive distraction.
The road ahead for Samsung’s chip strategy
The Galaxy S26 strategy marks a decisive moment for Samsung’s industrial future. If the 2nm Exynos demonstrates stability at scale, Samsung will have successfully navigated the most difficult transition in modern semiconductor history. It would strengthen the company’s negotiating hand with Qualcomm and validate the SF2 node for global clients. This would effectively secure Samsung’s position as the only credible alternative to the TSMC-Apple hegemony.
If performance divergence remains a visible point of contention for reviewers and consumers, Samsung faces an existential choice. Continuing to pour billions into advanced-node R&D while shipping perceived inferior silicon is a strategy with diminishing returns. The Galaxy S26 is therefore far more than a smartphone refresh. It is a critical test of whether Samsung’s vertically integrated model can survive the transition to the 2nm era. In a world where semiconductors are the primary currency of technological and geopolitical influence, the stakes of this chip split extend far beyond the handset itself.
